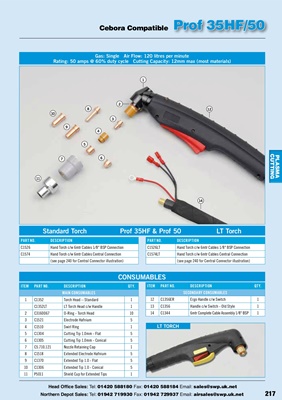

Cebora Compatible

Gas: Single Air Flow: 120 litres per minute

Rating: 50 amps @ 60% duty cycle Cutting Capacity: 12mm max (most materials)

PART NO. DESCRIPTION

C1526 Hand Torch c/w 6mtr Cables 1⁄8" BSP Connection

C1574 Hand Torch c/w 6mtr Cables Central Connection

(see page 240 for Central Connector illustration)

PART NO. DESCRIPTION

C1526LT Hand Torch c/w 6mtr Cables 1⁄8" BSP Connection

C1574LT Hand Torch c/w 6mtr Cables Central Connection

(see page 240 for Central Connector illustration)

Standard Torch Prof 35HF & Prof 50 LT Torch

CONSUMABLES

ITEM PART NO. DESCRIPTION QTY.

MAIN CONSUMABLES

1 C1352 Torch Head - Standard 1

C1352LT LT Torch Head c/w Handle 1

2 C3160067 O-Ring - Torch Head 10

3 C1521 Electrode Hafnium 5

4 C1510 Swirl Ring 1

5 C1304 Cutting Tip 1.0mm - Flat 5

6 C1305 Cutting Tip 1.0mm - Conical 5

7 C5.710.121 Nozzle Retaining Cap 1

8 C1518 Extended Electrode Hafnium 5

9 C1370 Extended Tip 1.0 - Flat 5

10 C1306 Extended Tip 1.0 - Conical 5

11 P5011 Shield Cup for Extended Tips 1

4

5

6

7

8

9

10

11

1

12

2

14

3

LT TORCH

ITEM PART NO. DESCRIPTION QTY.

SECONDARY CONSUMABLES

12 C1356ER Ergo Handle c/w Switch 1

13 C1356 Handle c/w Switch - Old Style 1

14 C1344 6mtr Complete Cable Assembly 1⁄8" BSP 1 PLASMA

CUTTING

Prof 35HF/50
