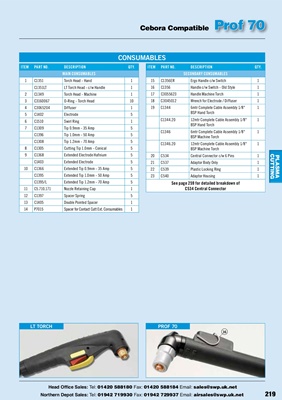

Page 0013

Head Office Sales: Tel: 01420 588180 Fax: 01420 588184 Email: sales@swp.uk.netttp://swp.uk.net" target="_blank" title="Visit swp.uk.net">swp.uk.netairsales@swp.uk.netpot Sales: Tel: 01942 719930 Fax: 01942 729937 Email: airsales@swp.uk.net 219

Cebora Compatible

CONSUMABLES

ITEM PART NO. DESCRIPTION QTY.

MAIN CONSUMABLES

1 C1351 Torch Head - Hand 1

C1351LT LT Torch Head - c/w Handle 1

2 C1349 Torch Head - Machine 1

3 C3160067 O-Ring - Torch Head 10

4 C3065204 Diffuser 1

5 C1402 Electrode 5

6 C1510 Swirl Ring 1

7 C1309 Tip 0.9mm - 35 Amp 5

C1396 Tip 1.0mm - 50 Amp 5

C1308 Tip 1.2mm - 70 Amp 5

8 C1305 Cutting Tip 1.0mm - Conical 5

9 C1368 Extended Electrode Hafnium 5

C1403 Extended Electrode 5

10 C1366 Extended Tip 0.9mm - 35 Amp 5

C1395 Extended Tip 1.0mm - 50 Amp 5

C1395/L Extended Tip 1.2mm - 70 Amp 5

11 C5.710.171 Nozzle Retaining Cap 1

12 C1397 Spacer Spring 5

13 C1405 Double Pointed Spacer 1

14 P7015 Spacer for Contact Cutt Ext. Consumables 1

ITEM PART NO. DESCRIPTION QTY.

SECONDARY CONSUMABLES

15 C1356ER Ergo Handle c/w Switch 1

16 C1356 Handle c/w Switch - Old Style 1

17 C3055623 Handle Machine Torch 1

18 C3045012 Wrench for Electrode / Diffuser 1

19 C1344 6mtr Complete Cable Assembly 1⁄8"

BSP Hand Torch

1

C1344.20 12mtr Complete Cable Assembly 1⁄8"

BSP Hand Torch

1

C1346 6mtr Complete Cable Assembly 1⁄8"

BSP Machine Torch

1

C1346.20 12mtr Complete Cable Assembly 1⁄8"

BSP Machine Torch

1

20 C534 Central Connector c/w 6 Pins 1

21 C537 Adaptor Body Only 1

22 C539 Plastic Locking Ring 1

23 C540 Adaptor Housing 1

See page 259 for detailed breakdown of

C534 Central Connector

LT TORCH

PLASMA

CUTTING

16

PROF 70

Prof 70
