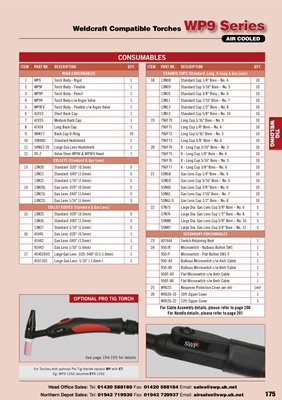

Page 0005

Head Office Sales: Tel: 01420 588180 Fax: 01420 588184 Email: sales@swp.uk.netttp://swp.uk.net" target="_blank" title="Visit swp.uk.net">swp.uk.netairsales@swp.uk.netpot Sales: Tel: 01942 719930 Fax: 01942 729937 Email: airsales@swp.uk.net 175

CONSUMABLES

ITEM PART NO. DESCRIPTION QTY.

MAIN CONSUMABLES

1 WP9 Torch Body - Rigid 1

2 WP9F Torch Body - Flexible 1

3 WP9P Torch Body - Pencil 1

4 WP9V Torch Body c/w Argon Valve 1

5 WP9FV Torch Body - Flexible c/w Argon Valve 1

6 41V33 Short Back Cap 1

7 41V35 Medium Back Cap 1

8 41V24 Long Back Cap 1

9 98W77 Back Cap O-Ring 10

10 598882 Standard Heatshield 1

11 54N63-20 Large Gas Lens Heatshield 1

12 VS-2 Valve Stem WP9V & WP9FV Head 1

COLLETS (Standard & Gas Lens)

13 13N20 Standard .020" (0.5mm) 5

13N21 Standard .040" (1.0mm) 5

13N22 Standard 1⁄16" (1.6mm) 5

14 13N20L Gas Lens .020" (0.5mm) 5

13N21L Gas Lens .040" (1.0mm) 5

13N22L Gas Lens 1⁄16" (1.6mm) 5

COLLET BODIES (Standard & Gas Lens)

15 13N25 Standard .020" (0.5mm) 5

13N26 Standard .040" (1.0mm) 5

13N27 Standard 1⁄16" (1.6mm) 5

16 45V41 Gas Lens .020" (0.5mm) 1

45V42 Gas Lens .040" (1.0mm) 1

45V43 Gas Lens 1⁄16" (1.6mm) 1

17 45V0204S Large Gas Lens .020-.040" (0.5-1.0mm) 1

45V116S Large Gas Lens 1⁄16" ( 1.6mm ) 1

ITEM PART NO. DESCRIPTION QTY.

CERAMIC CUPS (Standard, Long, X-Long & Gas Lens)

18 13N08 Standard Cup 1⁄4" Bore - No. 4 10

13N09 Standard Cup 5⁄16" Bore - No. 5 10

13N10 Standard Cup 3⁄8" Bore - No. 6 10

13N11 Standard Cup 7⁄16" Bore - No. 7 10

13N12 Standard Cup 1⁄2" Bore - No. 8 10

13N13 Standard Cup 5⁄8" Bore - No. 10 10

19 796F70 Long Cup 3⁄16" Bore - No. 3 10

796F71 Long Cup 1⁄4" Bore - No. 4 10

796F72 Long Cup 5⁄16" Bore - No. 5 10

796F73 Long Cup 3⁄8" Bore - No. 6 10

20 796F74 X - Long Cup 3⁄16" Bore - No. 3 10

796F75 X - Long Cup 1⁄4" Bore - No. 4 10

796F76 X - Long Cup 5⁄16" Bore - No. 5 10

796F77 X - Long Cup 3⁄8" Bore - No. 6 10

21 53N58 Gas Lens Cup 1⁄4" Bore - No. 4 10

53N59 Gas Lens Cup 5⁄16" Bore - No. 5 10

53N60 Gas Lens Cup 3⁄8" Bore - No. 6 10

53N61 Gas Lens Cup 7⁄16" Bore - No. 7 10

53N61-S Gas Lens Cup 1⁄2" Bore - No. 8 10

22 57N75 Large Dia. Gas Lens Cup 3⁄8" Bore - No. 6 5

57N74 Large Dia. Gas Lens Cup 1⁄2" Bore - No. 8 5

53N88 Large Dia. Gas Lens Cup 5⁄8" Bore - No. 10 5

53N87 Large Dia. Gas Lens Cup 3⁄4" Bore - No. 12 5

SECONDARY CONSUMABLES

23 607664 Switch Retaining Boot 1

24 950/B Microswitch - Bulbous Button SW1 1

950/F Microswitch - Flat Button SW1-F 1

950-40 Bulbous Microswitch c/w 4mtr Cable 1

950-80 Bulbous Microswitch c/w 8mtr Cable 1

950F-40 Flat Microswitch c/w 4mtr Cable 1

950F-80 Flat Microswitch c/w 8mtr Cable 1

25 W9025 Neoprene Protective Cover per mtr 1mtr

26 W9026-10 10ft Zipper Cover 1

W9026-22 22ft Zipper Cover 1

For Cable Assembly details, please refer to page 200

For Handle details, please refer to page 201

For Torches with optional Pro Tig Handle replace WP with ET:

Eg: WP9-12SZ becomes ET9-12SZ

OPTIONAL PRO TIG TORCH

See page 194-195 for details

Weldcraft Compatible Torches

AIR COOLED

TIG

WELDING

WP9 Series
