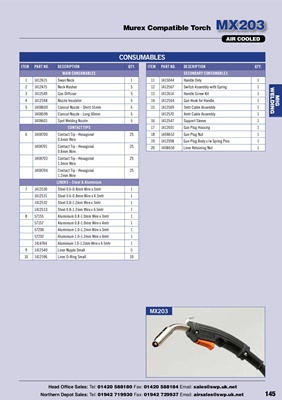

Page 0065

Head Office Sales: Tel: 01420 588180 Fax: 01420 588184 Email: sales@swp.uk.netttp://swp.uk.net" target="_blank" title="Visit swp.uk.net">swp.uk.netairsales@swp.uk.netpot Sales: Tel: 01942 719930 Fax: 01942 729937 Email: airsales@swp.uk.net 145

CONSUMABLES

ITEM PART NO. DESCRIPTION QTY.

SECONDARY CONSUMABLES

11 1415044 Handle Only 1

12 1412567 Switch Assembly with Spring 1

13 1412614 Handle Screw Kit 1

14 1412564 Gun Hook for Handle 1

15 1412569 3mtr Cable Assembly 1

1412570 4mtr Cable Assembly 1

16 1412547 Support Sleeve 1

17 1412601 Gun Plug Housing 1

18 1408652 Gun Plug Nut 1

19 1412598 Gun Plug Body c/w Spring Pins 1

20 1408650 Liner Retaining Nut 1

MX203

Murex Compatible Torch

ITEM PART NO. DESCRIPTION QTY.

MAIN CONSUMABLES

1 1412615 Swan Neck 1

2 1412475 Neck Washer 5

3 1412549 Gas Diffuser 5

4 1412548 Nozzle Insulator 5

5 1408600 Conical Nozzle - Short 55mm 5

1408599 Conical Nozzle - Long 60mm 5

1408601 Spot Welding Nozzle 5

CONTACT TIPS

6 1408700 Contact Tip - Hexagonal

0.6mm Wire

25

1408701 Contact Tip - Hexagonal

0.8mm Wire

25

1408703 Contact Tip - Hexagonal

1.0mm Wire

25

1408704 Contact Tip - Hexagonal

1.2mm Wire

25

LINERS - Steel & Aluminium

7 1412530 Steel 0.6-0.8mm Wire x 3mtr 1

1412531 Steel 0.6-0.8mm Wire x 4.5mtr 1

1412532 Steel 0.8-1.2mm Wire x 3mtr 1

1412533 Steel 0.8-1.2mm Wire x 4.5mtr 1

8 57155 Aluminium 0.8-1.0mm Wire x 3mtr 1

57157 Aluminium 0.8-1.0mm Wire x 4mtr 1

57200 Aluminium 1.0-1.2mm Wire x 3mtr 1

57202 Aluminium 1.0-1.2mm Wire x 4mtr 1

1414764 Aluminium 1.0-1.2mm Wire x 4.5mtr 1

9 1412540 Liner Nipple Small 5

10 1412596 Liner O-Ring Small 10

AIR COOLED

MIG

WELDING

MX203
