Welding Positions Welding Positions

Head Office Sales: Tel: 01420 588180 Fax: 01420 588184 Email: sales@swp.uk.netttp://swp.uk.net" target="_blank" title="Visit swp.uk.net">swp.uk.netairsales@swp.uk.netpot Sales: Tel: 01942 719930 Fax: 01942 729937 Email: airsales@swp.uk.net 19

Standards

Mechanical Properties

Cu

87.8

Sn

12.0

P

0.20

EN 24373 Cu 5410 (Cu Sn 12P)

BS 2901 C27

Melting Point ºC 850

UTS N/mm2 320

Hardness BHN 120

Features and Applications

• Phosphor bronze rod with 12% tin for improved colour match

on brass and bronze. Low melting point makes this rod ideal

for TIG brazing thin sheet on ferrous and dissimilar joints

• Artistic foundries, brewing, chemical and automotive

industries, repair and maintenance

Current Type

DC-

Shielding Gas

Pure Argon

Chemical Composition

Product Information

Approvals on request

Manufacturer's Approvals

5.0kg Tube

Diameter Part No.

1.6mm 7144

2.4mm 7145

Standards

Mechanical Properties

Cu

89.0

Al

10.0

Fe

1.00

AWS : A5.7 ER Cu AL - A2

EN 24373 Cu 6180 (Cu Al 10 Fe)

BS 2901 C13

Melting Point ºC 1030

UTS N/mm2 500

Hardness BHN 95

Features and Applications

• Aluminium bronze rod for joining and repair welding of

Aluminium bronze castings of similar composition and

depositing bearing surfaces. Wear and corrosion resistant,

also excellent for TIG brazing on ferrous and dissimilar metals

• Copper boilers, brewing and power generation industries

Current Type

AC

Shielding Gas

Pure Argon

Chemical Composition

Product Information

Approvals on request

Manufacturer's Approvals

5.0kg Tube

Diameter Part No.

1.6mm 7147

2.4mm 7148

3.2mm 7149

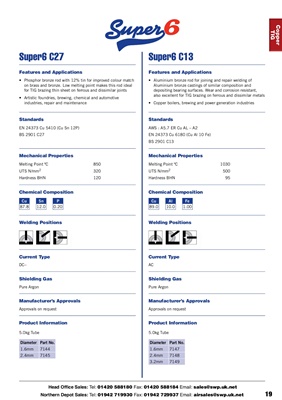

Super6 C27 Super6 C13

Copper

TIG
