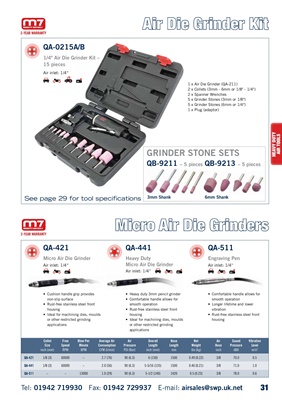

QA-0215A/B
1/4" Air Die Grinder Kit -
15 pieces
Collet Free Blow Per Average Air Air Overall Hose Net Air Sound Vibration
Size Speed Minute Consumption Pressure Length Length Weight Hose Pressure Level
inch (mm) RPM BPM CFM (l/min) PSI (Bar) inch (mm) mm lbs (kg) inch dBA m/s2
QA-421 1/8 (3) 60000 - 2.7 (76) 90 (6.3) 6 (150) 1500 0.49 (0.22) 3/8 70.0 0.5
QA-441 1/8 (3) 60000 - 2.0 (56) 90 (6.3) 5-5/16 (135) 1500 0.46 (0.21) 3/8 71.0 1.0
QA-511 - - 13000 1.0 (29) 90 (6.3) 5-1/2 (140) 1420 0.5 (0.23) 3/8 78.0 0.6
Air Die Grinder Kit
Micro Air Die Grinders
• Comfortable handle allows for
smooth operation
• Longer lifetime and lower
vibration
• Rust-free stainless steel front
housing
• Heavy duty 3mm pencil grinder
• Comfortable handle allows for
smooth operation
• Rust-free stainless steel front
housing
• Ideal for machining dies, moulds
or other restricted grinding
applications
• Cushion handle grip provides
non-slip surface
• Rust-free stainless steel front
housing
• Ideal for machining dies, moulds
or other restricted grinding
applications
QB-9211 - 5 pieces QB-9213 - 5 pieces
GRINDER STONE SETS
3mm Shank 6mm Shank
QA-421 QA-441 QA-511
Micro Air Die Grinder Heavy Duty
Micro Air Die Grinder
Engraving Pen
Air inlet: 1/4'' Air inlet: 1/4''
Air inlet: 1/4''
Air inlet: 1/4''
See page 29 for tool specifications
HEAVY DUTY
AIR TOOLS
31
1 x Air Die Grinder (QA-211)
2 x Collets (3mm - 6mm or 1/8" - 1/4")
2 x Spanner Wrenches
5 x Grinder Stones (3mm or 1/8")
5 x Grinder Stones (6mm or 1/4")
1 x Plug (adaptor)
