Page 0006

MM CM M IN FT

MM 1 0.1 0.001 0.0394 0.0033

CM 10 1 0.01 0.3937 0.0328

M 1000 100 1 39.371 3.2809

IN 25.4 2.54 0.0254 1 0.0833

FT 304.79 30.479 0.3048 12 1

Length

LBF-IN LBF-FT KGF-CM KGF-M N-M

LBF-IN 1 0.083 1.152 0.0115 0.113

LBF-FT 12 1 13.83 0.138 1.356

KGF-CM 0.868 0.072 1 0.01 0.098

KGF-M 86.8 7.233 100 1 9.807

N-M 8.851 0.783 10.2 0.102 1

Torque

KGF/CM² BAR KPA LB/IN² (PSI) ATM

KGF/CM2 1 0.8907 98.0665 14.2231 0.9678

BAR 1.0197 1 100 14.5036 0.9869

KPA 0.0102 0.01 1 0.145 0.0097

LB/IN2 (PSI) 0.0703 0.069 6.895 1 0.0680

ATM 1.0332 1.0133 101.325 14.6957 1

Pressure

G KG LB

G 1 0.001 0.0022

KG 1000 1 2.2046

LB 453.59 0.45359 1

Weight

KGF N LBF

KGF 1 9.8067 2.2046

N 0.102 1 0.2248

LBF 0.4536 4.4482 1

Force

L/SEC L/MIN M³/H M³/MIN GA/MIN FT³/H FT³/MIN (CFM)

L/SEC 1 60 3.6 0.06 13.197 127.14 2.119

L/MIN 0.0167 1 0.06 0.001 0.23 2.119 0.0353

M3/H 0.2778 16.6667 1 0.0167 3.6658 35.3165 0.5886

M3/MIN 16.666 1000 60 1 219.95 2119 35.3165

GA/MIN 0.0758 4.5465 0.2728 0.0045 1 9.6342 0.1606

FT3/H 0.0079 0.4719 0.0283 0.0005 0.1038 1 0.0167

FT3/MIN (CFM) 0.4719 28.3152 1.6989 0.0283 6.2279 60 1

Flow

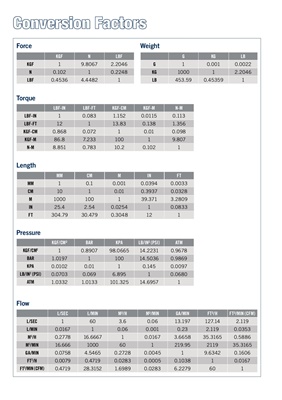

Conversion Factors
